eSync Controller

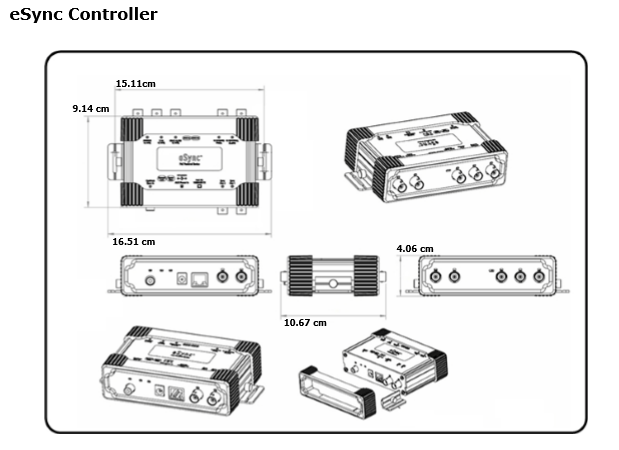

eSync Controller Diagram

ESync 1


Physical Characteristics

  • Width: 13.89 cm (5.47”)
  • Height: 4.09 cm (1.61”)
  • Depth: 9.25 cm (3.64”)
  • Weight: 368.54 g (13 oz)
  • Operating temperature: 0°C to +40°C (32°F to 104°F)


Input/Output & Power

  • PoE: IEEE 802.3af-2003
  • Adapter: 12V DC and 3 Amps
  • Data: Ethernet


Status LEDs

  • Per port activity status
  • Master time
  • External lock
  • Ethernet link status
  • Ethernet activity


eSync Controller Functions

The eSync Controller synchronizes BTSensors so that the shutters of BTSensors open and close simultaneously and in synchronization with the pulsing of LED Stringers attached to BTBeacons.

eSync Controller Connection to the TimeKeeper

The eSync Controller connects to the TimeKeeper over RCA cable. The RCA cable is plugged into the RCA port of the eSync Controller.
