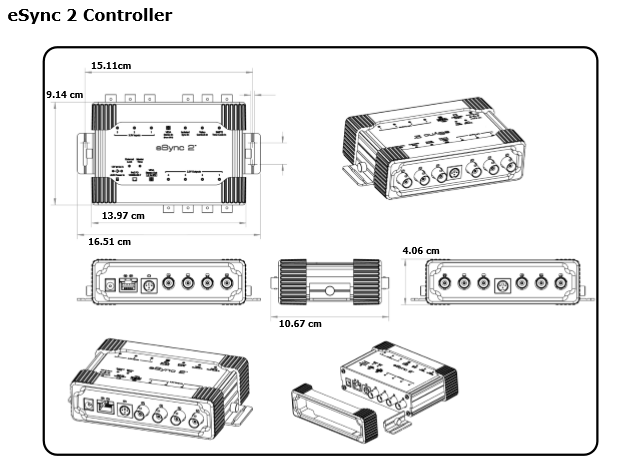

eSync 2 Controller Diagram

Physical Characteristics

• Width: 13.89 cm (5.47”)
• Height: 4.09 cm (1.61”)
• Depth: 9.25 cm (3.64”)
• Weight: 368.54 g (13 oz)
• Operating temperature: 0°C to +40°C (32°F to 104°F)

Input/Output & Power

• PoE: IEEE 802.3af-2003
• Adapter: 12V @ 0.6A power supply
• Data: Ethernet

Status LEDs

• Per port activity status
• Master time
• External lock
• Ethernet link status
• Ethernet activity

eSync 2 Controller Functions

The eSync 2 Controller synchronizes BTSensors so that the shutters of BTSensors open and close simultaneously and in synchronization with the pulsing of LED Stringers attached to BTBeacons.

eSync 2 Controller Connection to the TimeKeeper

The eSync 2 Controller connects to the TimeKeeper over RCA cable. A BNC/RCA adapter is used to plug the RCA into input 3 of the eSync 2 Controller.
