(Preliminary)
BT-1 Calibration Tool
The BT-1 Calibration Tool is a two-piece modular tool used to calibrate the BTSensors in the BT-1 System.
BTSensors must be calibrated after installation, orientation, and adequate overlapping view coverage of the tracking space.
To calibrate BTSensors, you need to:
- Collect calibration samples through the wanding calibration process using the BT-1 Wanding module. See Wanding Calibration BT-1.

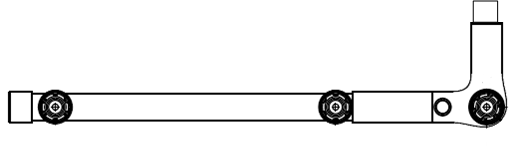

BT-1 Wand module.
- Set the ground plane to complete the system calibration using the assembled BT-1 Ground Plane Calibration tool. See Ground Plane Calibration BT-1.
BT-1 Ground Plane assembled module.
