Using Motive to Aim BTSensors

Motive for BlackTrax  »  Initial Setup  »  Using Motive to Aim BTSensors

For tracking to occur, BTSensors must be positioned around the perimeter of the tracking area and aimed towards the area. Tracking occurs in an area when two or more BTSensors view the same area at the same time. A video feed of what BTSensors see is shown in Motive. By viewing the BTSensor’s video feed in the visible spectrum, BTSensor positioning can be evaluated.

Attention: The Space origin must be visible to at least two BTSensors for sensor calibration to function correctly.

Note: To quickly see a BTSensor’s video feed in the visible spectrum, change the preset setting of the BTSensor to Reference. See To select a preset setting for a BTSensor for more information.

Motive 2.2

To view a BTSensor’s video feed in the visible spectrum

  1. In Motive, click the drop-down box at the right-hand side of the main toolbar and click Aiming from the drop-down menu of layout presets.
    • Result: Motive opens the preset windows for the aiming of BTSensors.

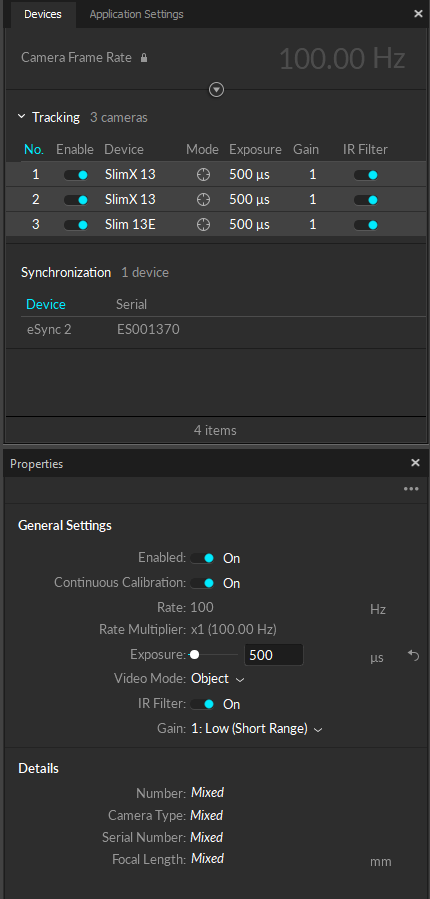

  2. In the Devices window, select a single Camera from a group or select all Cameras in a group.
  3. With the Camera(s) selected, set Video Mode and IR Filter in the Properties window.
  4. Click the Video Mode drop-down list and select MJPEG High Quality.
  5. Turn the IR Filter toggle to OFF.

DevicesProperties2 2

Result: The video displayed from the BTSensors will appear as a grayscale image in the visible spectrum.

Motive 2

To view a BTSensor’s video feed in the visible spectrum

  1. In Motive, click the drop-down box at the right-hand side of the main toolbar and click Aiming from the drop-down menu of layout presets.
    • Result: Motive opens the preset windows for the aiming of BTSensors.
  2. In the Devices window, click the group name to select a single Camera, or select all Cameras in the group.
  3. With the Camera(s) selected, look below to the Properties section of the Devices window.
  4. On the Camera Settings section, set the Filter Switch field to Visible Spectrum.
  5. On the Camera Settings section, set the Video Type field to MJPEG Mode and select the range of MJPEG Quality from the drop-down menu. The range of MJPEG Quality is between 1 (minimum) and up to 4 (maximum).

DevicesGroup CameraSettings

​Result: The video displayed from the BTSensors will appear as a grayscale image in the visible spectrum.
