Sync Dock

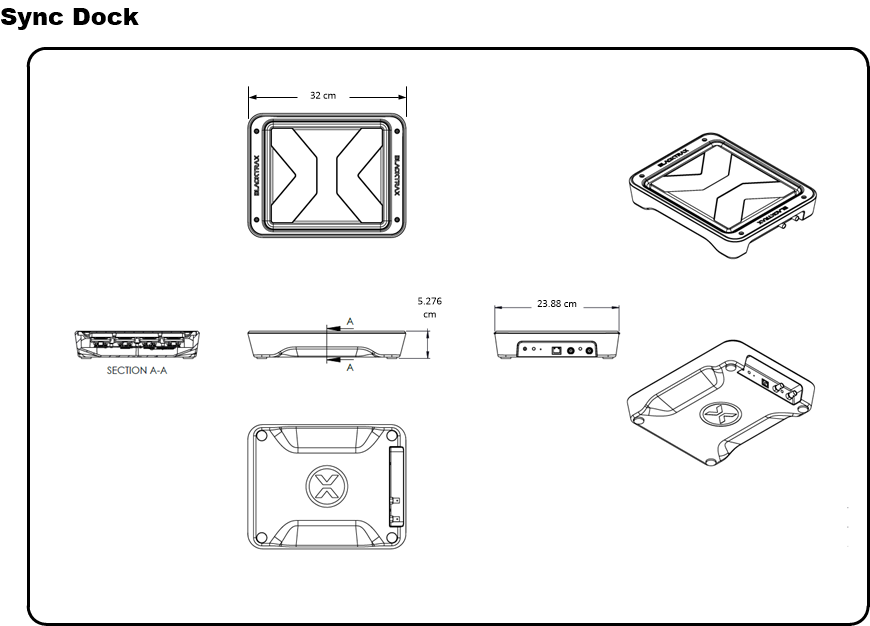

Sync Dock Diagram

SyncDock Diagram



Size and Weight

  • Case: Steel
  • Width: 23.88 cm (9.40”)
  • Height: 32 cm (12.60”)
  • Depth: 5.28 cm (2.08”)
  • Weight: 461 g (16.27 oz)

Input/Output & Power

  • Data: BNC (Sync In/Out), Ethernet (Device Manager)
  • Input Power: 12VDC, 2.5A, 30 Watt
  • Power Adaptor Voltage range: 100V - 240V

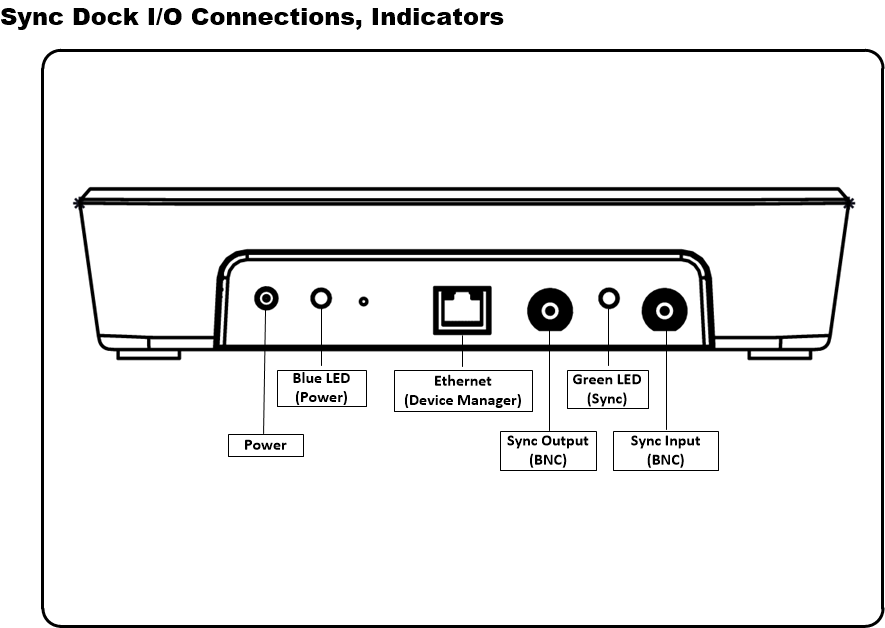

Input/Output Panel Diagram

SyncDock Io Diagram

Sync Dock Functions

The Sync Dock is a device used to recharge the battery of Mini Beacons. A maximum of 20 Mini Beacons can be docked onto 20 docking cases in the Sync Dock. While docked, the Mini Beacons automatically sync with the TimeKeeper of the BTSystem.

Sync Dock Panel Connections and Indicators

  • Power: Plug power input into the Power Jack Connector from the AC power adapter.
  • Sync Input (BNC): Connect and receive sync calibration data from the TimeKeeper of the BlackTrax System through the BNC connector.
    • Note: From the TimeKeeper, use a BNC splitter to split the BNC connection. One end of the BNC split connects to the eSync (normal connection) and the other end of the BNC split connects to the Sync Dock.
  • Sync Output (BNC): Connect and send sync calibration data to another Sync Dock through the BNC connector.
    • Note: You can daisy chain multiple Sync Docks through the Sync Input and Sync Output connections to sync several Sync Docks and Mini Beacons at once. You can daisy chain a maximum of 16 Sync Docks with 320 Mini Beacons at once.
  • Ethernet: Connect to the Device Manager through the ethernet connection.
  • Blue LED: When the Sync Dock is plugged into a power source, the blue LED at the front panel lights up.
  • Green LED: When the Sync Dock is receiving sync transmission from the BTSystem, the green LED at the front panel lights up.

Mini Beacon Docking

  • Mini Beacon Sync: When a Mini Beacon is placed on the Sync Dock, it will take about 1 minute for the Mini Beacon to fully sync with the TimeKeeper. When the Mini Beacon is placed on the Sync Dock, its LED is turned off until it is removed.
  • Blue LED (on each single dock casing): Indicates the sync status of the docked Mini Beacon. This LED flashes while the Mini Beacon is syncing and turns solid when sync is complete.
    • Note: If a Mini Beacon is removed from the Sync Dock before calibration is complete, the Mini Beacon will not turn its LED on.
  • Green LED (on each single dock casing): Indicates power of the docked Mini Beacon. This LED flashes while the Mini Beacon is charging, and turns solid when charging is complete.
  • Mini Beacon Charging: A Mini Beacon will take about 2 hours to complete charge.

Regulatory & Electrical Safety Information

FCC Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

ISED Notifications

This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:

  1. This device may not cause interference; and
  2. This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.  L’exploitation est autorisée aux deux conditionssuivantes:

  1. l’appareil ne doit pas produire de brouillage;
  2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Electrical Ratings

Refer to Input/Output & Power section of this page (above).
