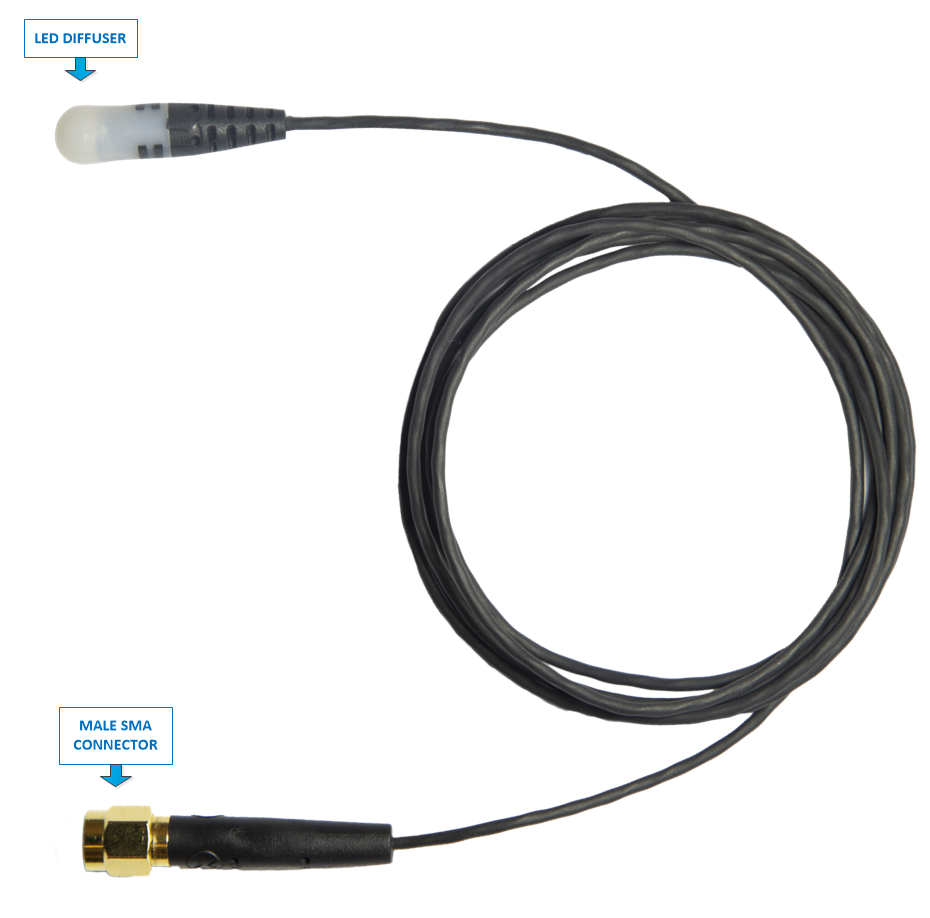

Stringer 2 Diagram

Physical Characteristics

• Cable length: 1.37 m (4.5') Custom sizes are available
• Cable thickness:  2.8 mm (0.11")
• IRED Diffuser diameter: 8 mm (5/16")
• Strain relief: 28 mm (1.1")
• Male SMA Connector: 9 mm x 8 mm (0.35" x 0.32")
  • Male SMA Connector diagram

Tensile Strength

• The stringer can withhold up to 10 - 15 lbs of tensile force at the connection points.

Operating Temperature

• Cable: Maximum 90ºC (194ºF)
• Diffuser: -100ºC / 135ºC (-148ºF / 275ºF)

Stringer 2 Functions

When the Stringer 2 is connected to a BTBeacon IRED port, the IRED portion of Stringer 2 will pulse that BTBeacon’s unique ID signal. The pulse is viewed by BTSensors, sent to the BTServer and used to calculate the BTBeacon position in the Space.
