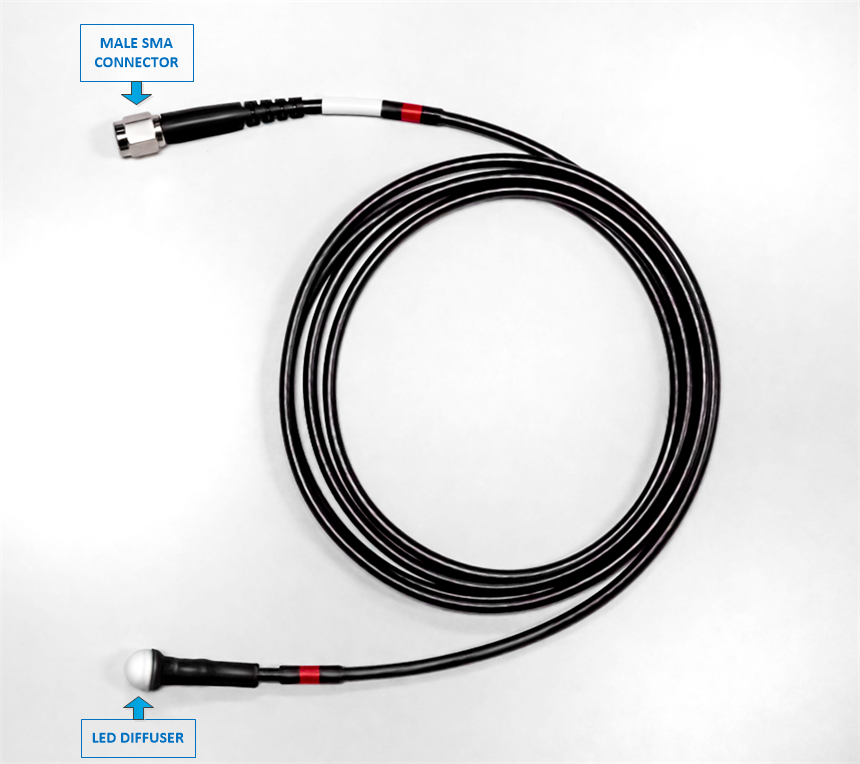

Stringer Diagram

Beacon Stringer


Physical Characteristics

  • Cable length: 1.37 m (4.5') Custom sizes are available
  • Cable thickness:  2.9 mm (0.11")
  • LED Diffuser diameter: 7.93 mm (5/16")
  • Strain relief: 30 mm (1.18")
  • Male SMA Connector: 9 mm x 8 mm (0.35" x 0.32")
    • Male SMA Connector diagram

Male SMA Connector Cross Section


Stringer Functions

When a Stringer is connected to a BTBeacon LED port, the LED portion of a Stringer will pulse that BTBeacon’s unique ID signal. The pulse is viewed by BTSensors, sent to the BTServer and used to calculate the BTBeacon position in the Space.
