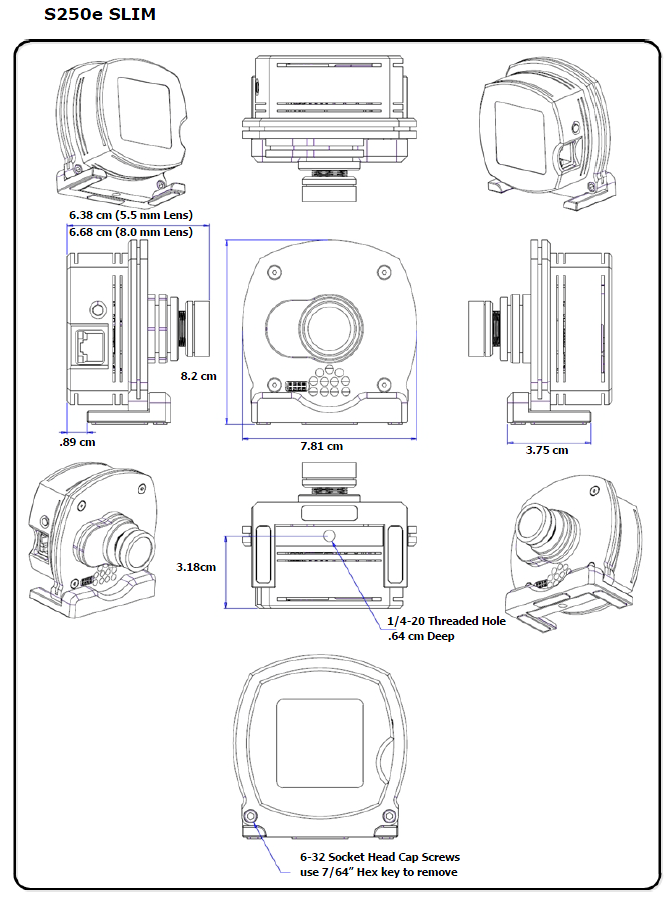

S250e SLIM diagram

Product ID

• Model Number: BT-S250-15

Physical Characteristics

• Mounting: 0.635 cm (1/4”)-20 tripod thread
• Operating temperature: 0°C to +51°C (32°F to 123.8°F)
• Case: Aluminum and Polycarbonate
• Width: 8.1 cm (3.19”)
• Height: 8. cm (3.16”)
• Depth: 6.76 cm (2.66”)
• Weight: 430.91 g (15.2 oz)

Lens & Filter

• Stock lens: 5.5 mm F#1.8 (wide band AR coated)
  • Horizontal FOV: 56°
  • Vertical FOV: 46°
• Optional lens: 8 mm F#1.8 (wide band AR coated)
  • Horizontal FOV: 42°
  • Vertical FOV: 34°
• M12 Lens Mount
• Adjustable focus with wave spring assist
• 800nm IR long pass filter with Filter Switcher

Image Sensor

• Resolution: 832 × 832
• Frame Rate: 30–250 FPS (100 FPS average usage)
• Accuracy: Sub-millimeter
• Latency: 4 ms
• Shutter Type: global
• Shutter Speed:
  • Default: 0.5 ms (500 µs)
  • Minimum: 0.01 ms (10 µs)
  • Maximum: 3.8 ms (3,800 µs) at 100 FPS

Input/Output & Power

• Data: Ethernet
• Synchronization: Ethernet
• Power: (PoE) 15.4 watts
