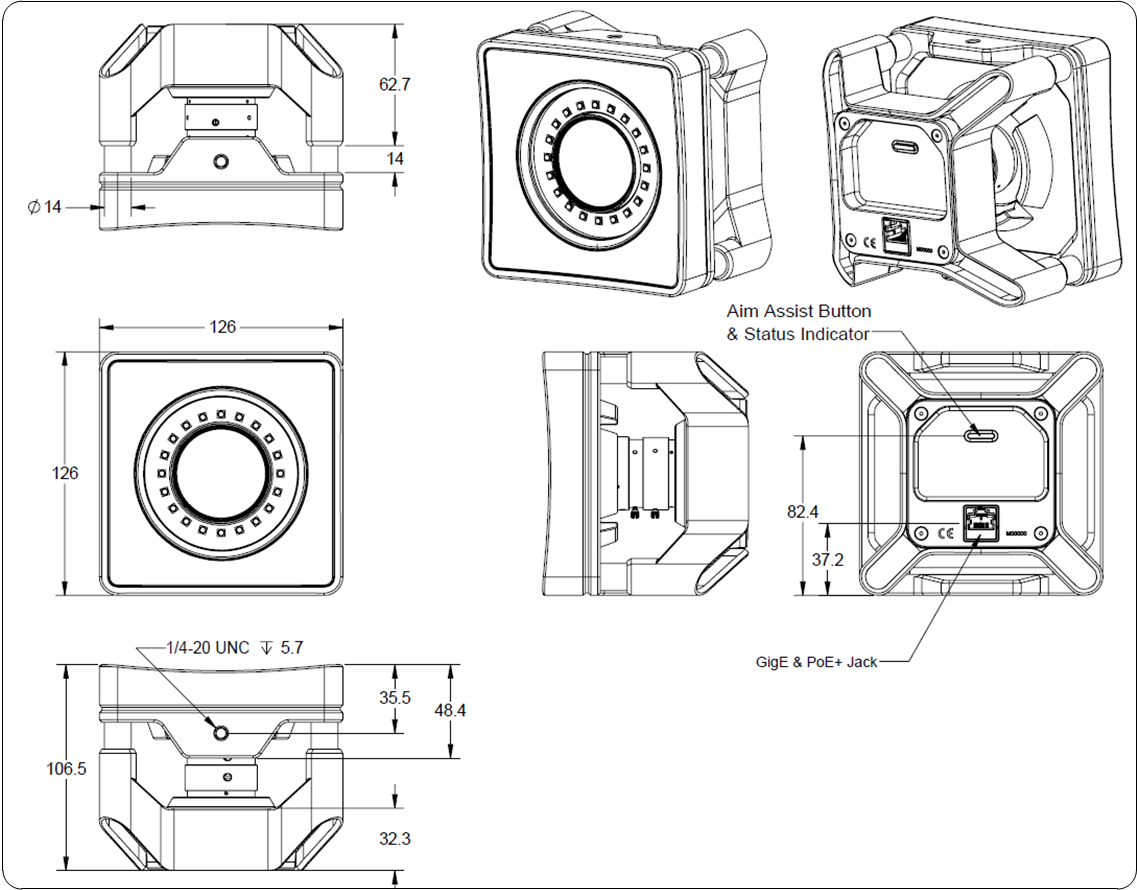

PRIME X 22 Diagram

Product ID

• Prime X 22 Model number: CAM-CAM-P22X

Physical Characteristics

• Mounting: 0.635 cm (1/4")-20 tripod thread (x2)
• Operating temperature: 0°C to +51°C (32°F to 123.8°F)
  • Note: Warm-up time of 30 minutes is recommended for optimal tracking performance. Watch out for condensation when used in temperatures below 0ºC
• Case: Aluminum and Polycarbonate
• Width: 12.6 cm (4.96”)
• Height: 12.6 cm (4.96”)
• Depth: 10.7 cm (4.19”)
• Weight: 1.26 kg (2.77 lb)

Lens & Filter

• Stock lens: 12 mm F#1.6 (wide band AR coated)
  • Horizontal FOV: 79°
  • Vertical FOV: 49°
• Adjustable focus and f-stop
• 850nm band-pass filter

Image Sensor

• Resolution: 2048 x 1088
• Frame Rate: 30–360Hz during focus mode, 100Hz during tracking mode
• Accuracy: +/- 0.15mm
• Latency: 2.8ms
• Shutter type: global
• Shutter speed:
  • Default: 0.25 ms (250 µs)
  • Minimum: 0.01 ms (10 µs)
  • Maximum:
    • 2.5 ms (2500 µs) at 360 FPS

Input/Output & Power

• Data: GigE (1000BASE-T)
• Synchronization: Ethernet
• Power: PoE or PoE+

Attention:

• The switch must provide consistent power to every port simultaneously in order to power each sensor.
• PoE+ switches must provide a full 30 watts to every port simultaneously.
• Note that PoE Midspan devices or power injectors are not suitable for Ethernet camera systems.
• LLDP enabled PoE+ switch required for full IR LED power.
