Optional Equipment Configuration

Optional Equipment Overview

Depending on your tracking needs, additional components must be connected with the BTSystem. The following outlines how to connect this optional equipment with the BTSystem.

Other Devices for Tracking with Lighting Fixtures

Connect the BTSystem, the Lighting Console, and DMX/Ethernet Node to the PoE switch via ethernet. The Node controls the merging of RTTrPL with sACN and sends it out to the lighting fixtures as DMX channels.

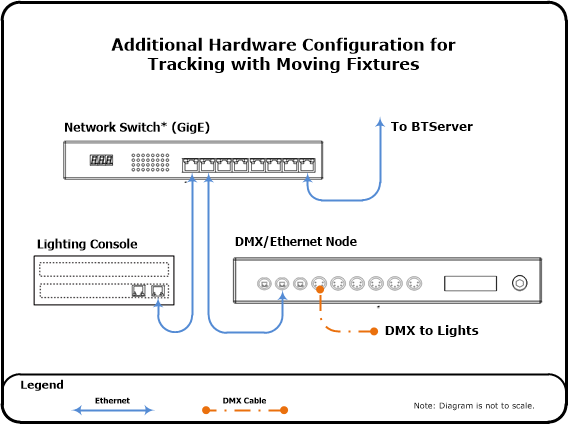

Tracking with Lighting Fixtures Diagram

BT System Configuration   Moving Lights
