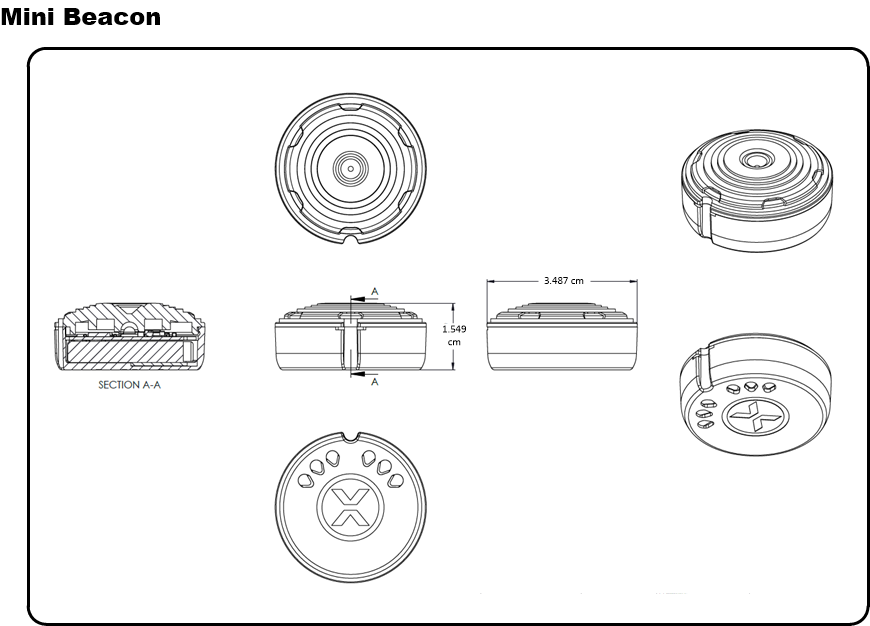

Mini Beacon Diagram
Physical Characteristics
- Case: Plastic on a wearable band
- Diameter: 3.487 cm (1.37")
- Height: 1.549 cm (0.61")
- Weight: 15 g (0.53 oz)
Electrical Ratings
- Input Power: 5.0VDC, 56mA, 0.28Watt
- Internal Battery: 3.7VDC, 300mAH, 1.11WH Lithium Polymer, rechargeable, not removable by end-user
Operating Temperature
- 0°C to +40°C (32°F to 104°F)
Mini Beacon Functions
A Mini Beacon emits infrared light in a unique pattern. These infrared pulses create a unique ID used to identify Mini Beacons. When the LED infrared pulse is seen by 2 or more BTSensors, the positional coordinates (XYZ) for the Stringer LED is calculated by the BTServer.
The Mini Beacon's internal rechargeable battery can be recharged with the use of the Sync Dock. The Sync Dock sets the Mini Beacons to automatically sync with the TimeKeeper of the BlackTrax system, while charging.
Attention: The Mini Beacon must connect to the new TimeKeeper model. Contact BlackTrax Technical Support (CAST) for the firmware required to run the Mini Beacons with TimeKeeper, Router and Beacons.
Note:
- When a Mini Beacon is docked in the Sync Dock, it will take around 1 minute for the Mini Beacon to fully sync with the TimeKeeper.
- The Mini Beacon does not transmit a radio signal.
- The default brightness of a Mini Beacon is 2.5ms.
- The battery life of a Mini Beacon at default brightness is 8 hours.
Mini Beacon Charging Information
A Mini Beacon’s rechargeable lithium-ion battery is not fully charged when shipped. Please read the following instructions carefully:
- A Mini Beacon will take about 2 hours to fully charge.
- Never charge Mini Beacons in the Sync Dock near heat or flammable objects.
- The temperature range which the MIni Beacon can be charged is 0°C to 40°C (32°F to 104°F). Charging outside the recommended temperature range may automatically be blocked by the protection circuitry of the device.
- Do not charge or use the Mini Beacon if any damage has occurred to the device.
- The temperature range over which the Mini Beacon’s battery can operate is 0°C to 40°C (32°F to 104°F). Operation outside of this temperature range may damage the performance of the battery or may reduce its life expectancy.
- Battery performance will naturally decay over time. If a battery can not maintain charge for long periods, even when it is being charged correctly, this may indicate it is time to replace the battery. Contact your BTE for details on replacement.
Attention: Any unauthorized modification to the Mini Beacon or its battery will invalidate any warranty claim and may damage the device.
Regulatory & Electrical Safety Information
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
ISED Notifications
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:
- This device may not cause interference; and
- This device must accept any interference, including inteference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditionssuivantes:
- l’appareil ne doit pas produire de brouillage;
- l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,même si le brouillage est susceptible d’en compromettre le fonctionnement.
Electrical Ratings
Refer to Electrical Ratings section of this page (above).
