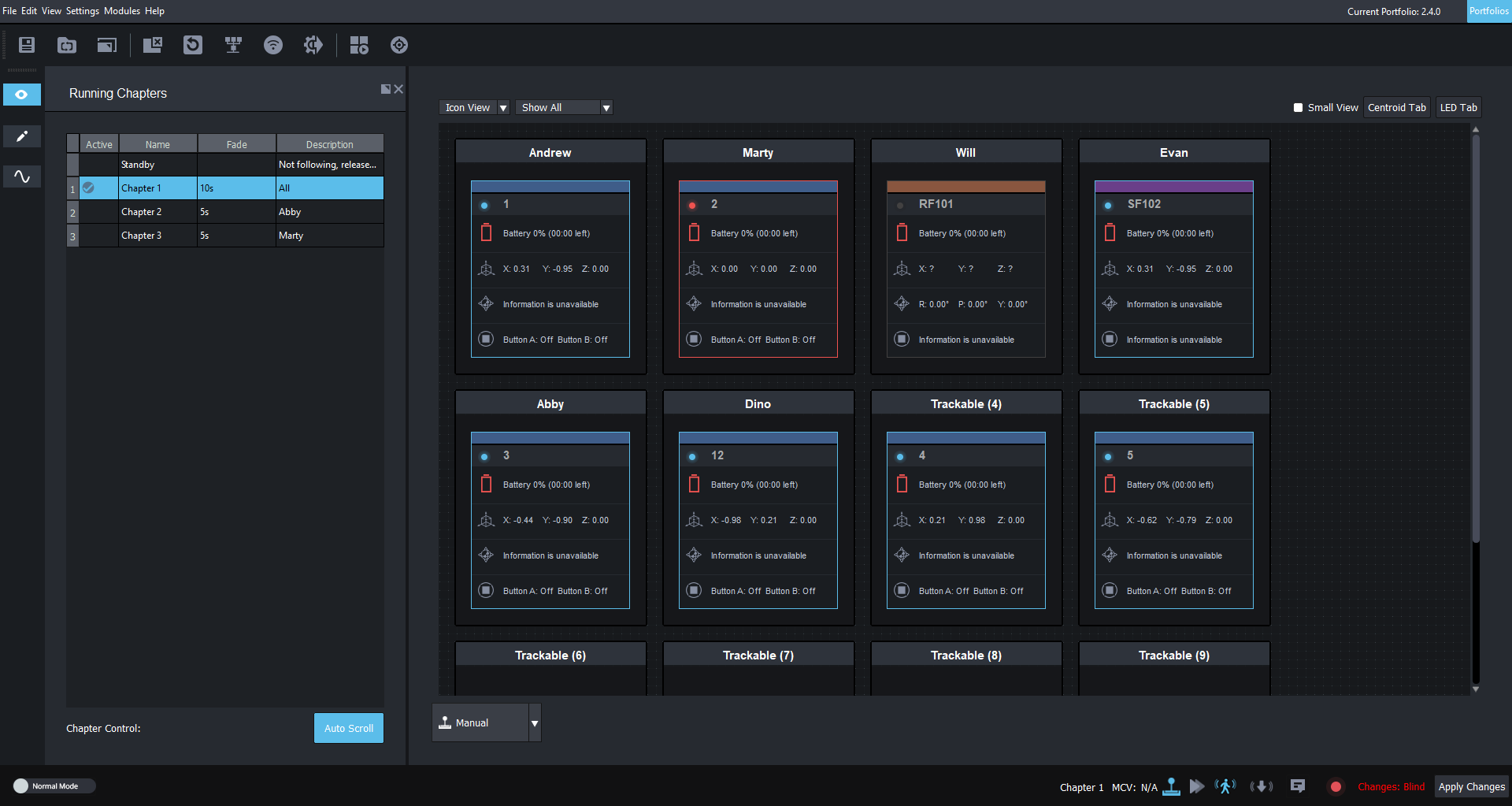

Live View showing all Trackables in the BlackTrax Project
Live Trackables
In the main window at the center area of the Live View, you see live trackable information, the current BTBeacon patch data, and their Trackables. There are different options for viewing this data.
Icon View
This view displays Trackable Data in the same way it is represented in the Beacon Patch Docking Widget. Displayed are:
- Trackable containers with Trackable Names.
- Any assigned beacons with their relevant information appear in the Trackable containers.
- Trackable containers appear with colored borders indicating if the Beacon is currently visible (Blue), or not visible (Red), or inactive (Grey).
- An indicator beside the beacon number to indicate if the beacon is currently visible (Blue), or not visible (Red), or inactive (Grey).

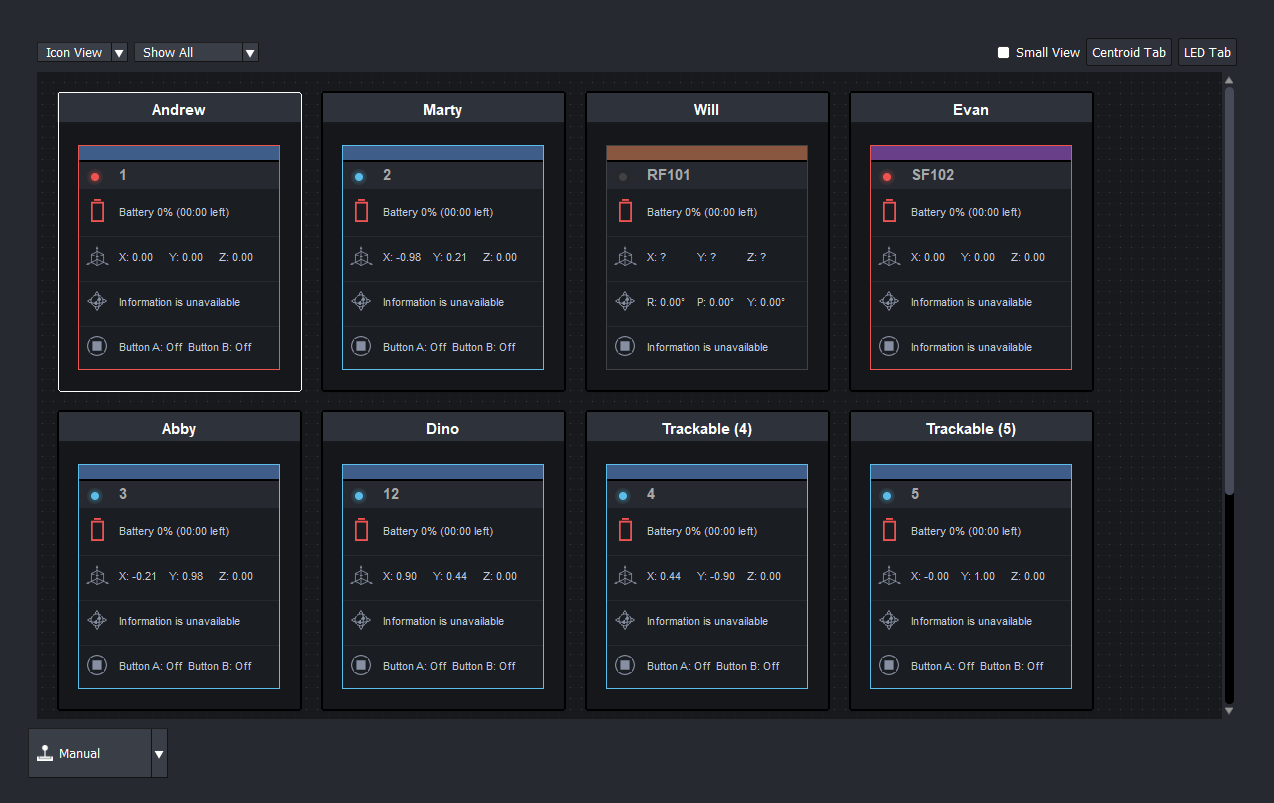

Live Trackables with Icon View
Table View
This view displays live trackable information with live LED status monitoring in the following columns:
- Trackable with name.
- Assigned Beacon.
- Battery Status.
- Radio Status: Fresh data (Blue), Stale data (Red).
- Visibility of the trackable: Visible (Blue), Not-visible (Grey).
- Status of the individual LED associated with the trackable: Active (Blue), Inactive (Dark Grey).

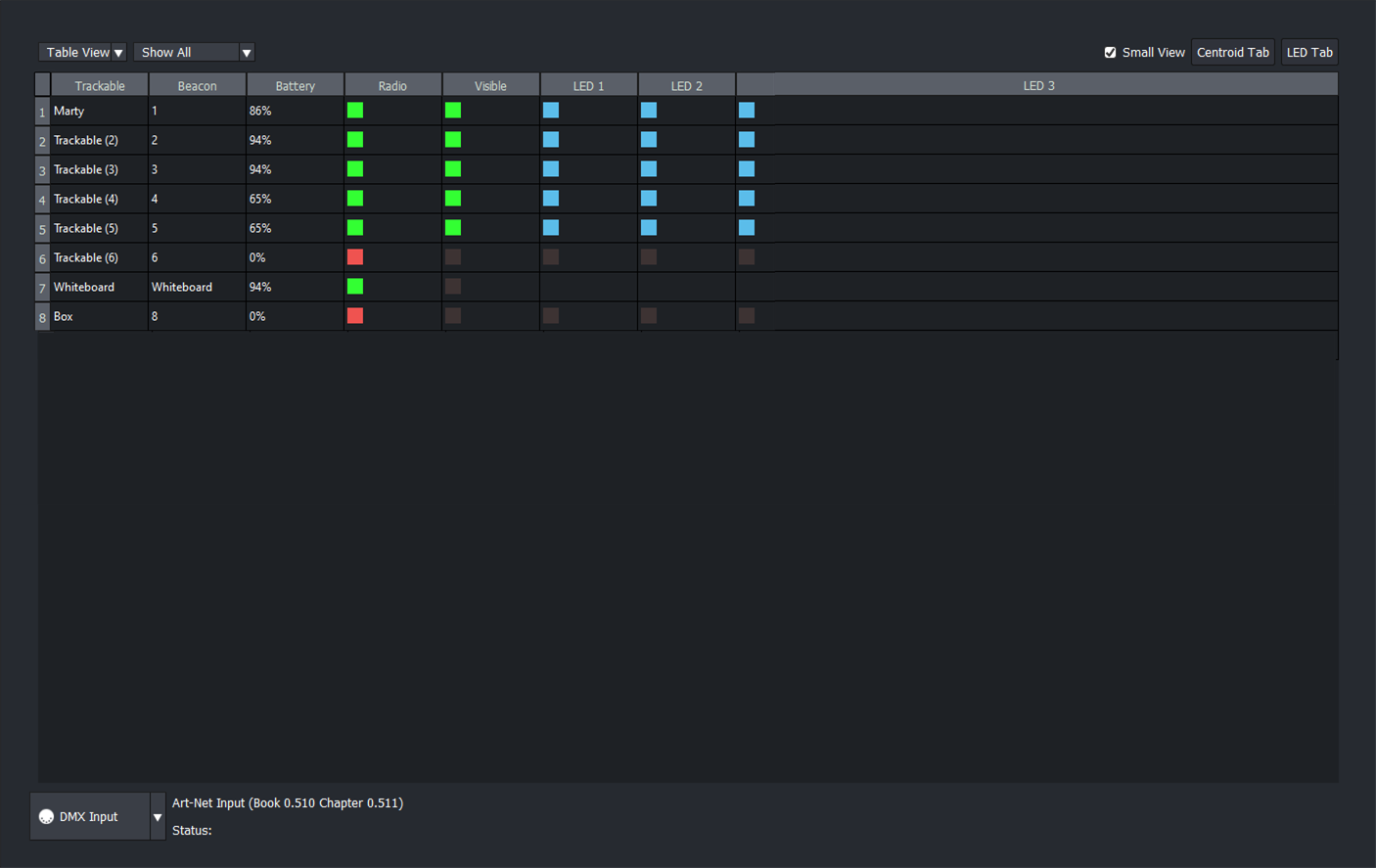

Live Trackables with Table View

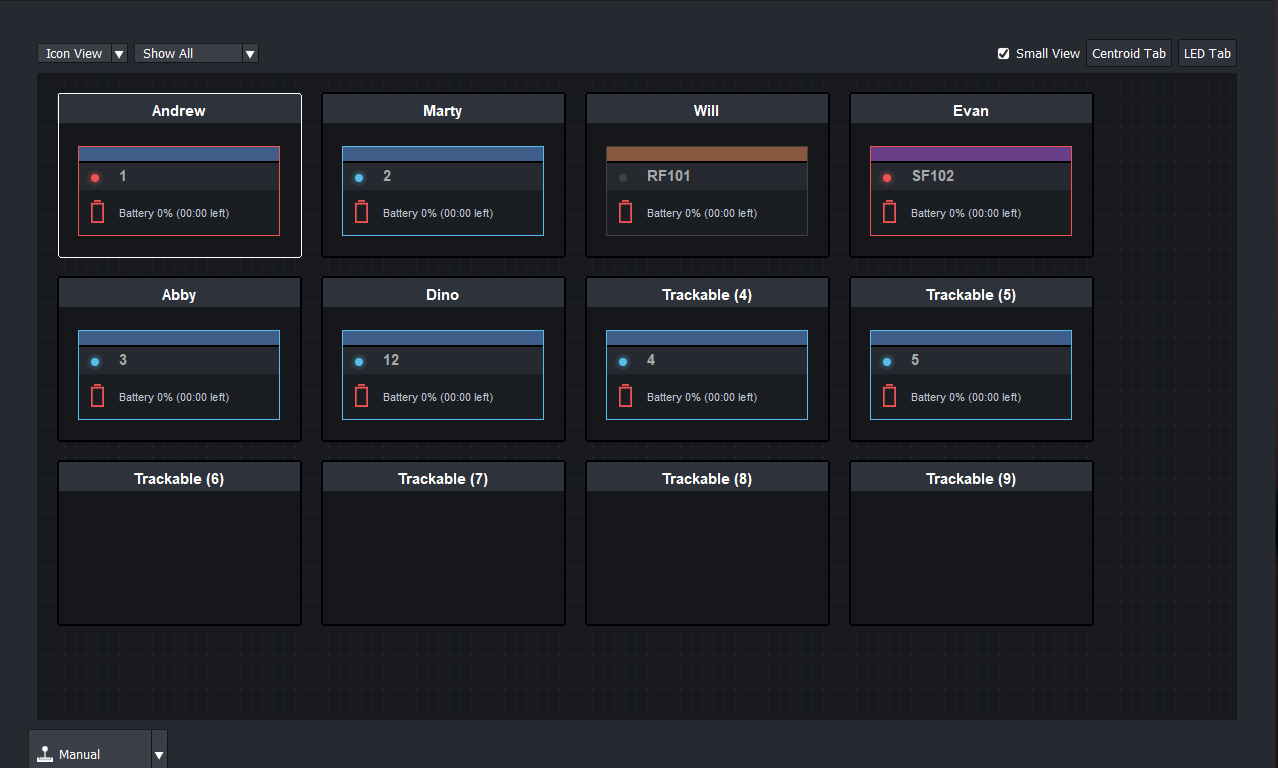

Small View
This view displays Trackable Data that is represented as small icons with the Trackable Name, beacon number with the relevant information and the indicator. Click on the box beside Small View to select this display option. Displayed are:
- Small Trackable container icons with Trackable Names.
- Any assigned beacons with their relevant information appear in Small Trackable containers.
- Small Trackable containers appear with colored borders indicating if the Beacon is currently visible (Blue), or not visible (Red), or inactive (Grey).
- An indicator beside the beacon number to indicate if the beacon is currently visible (Blue), or not visible (Red), or inactive (Grey).
In addition to the views mentioned above, there are further sorting options available to show the relevant data as the user prefers. They are:
Show per Chapter
This option will show only trackables currently assigned to the currently running chapter.

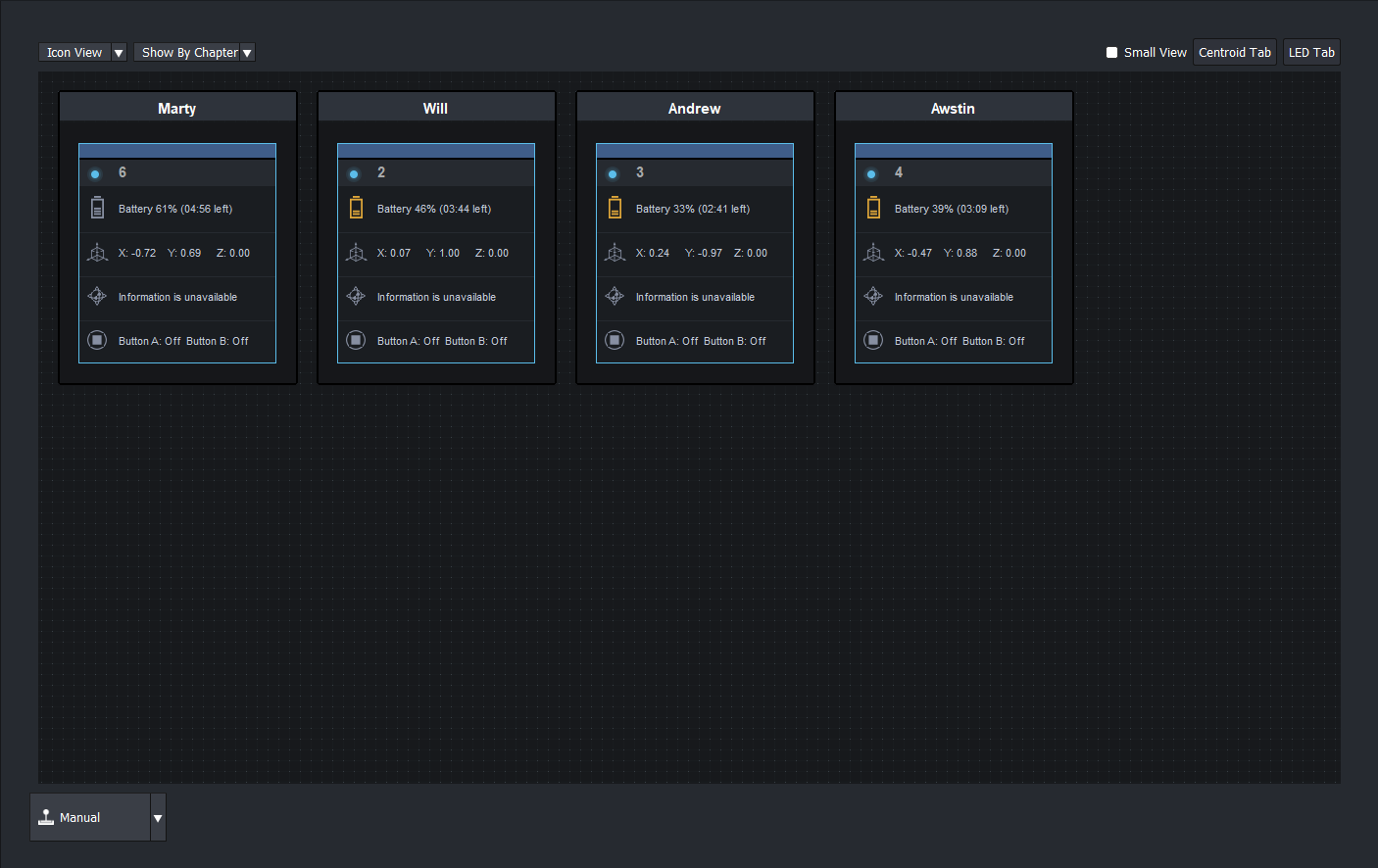

Per Chapter Live Trackables using the Icon View
Show by Group
This option displays any trackables that have been assigned to a group through the Trackables docking widget. When showing by group, an additional drop-down menu appears to allow the selection of groups. For information on Trackable group creation, refer to Grouping Trackables in the Libraries widget section of this manual.

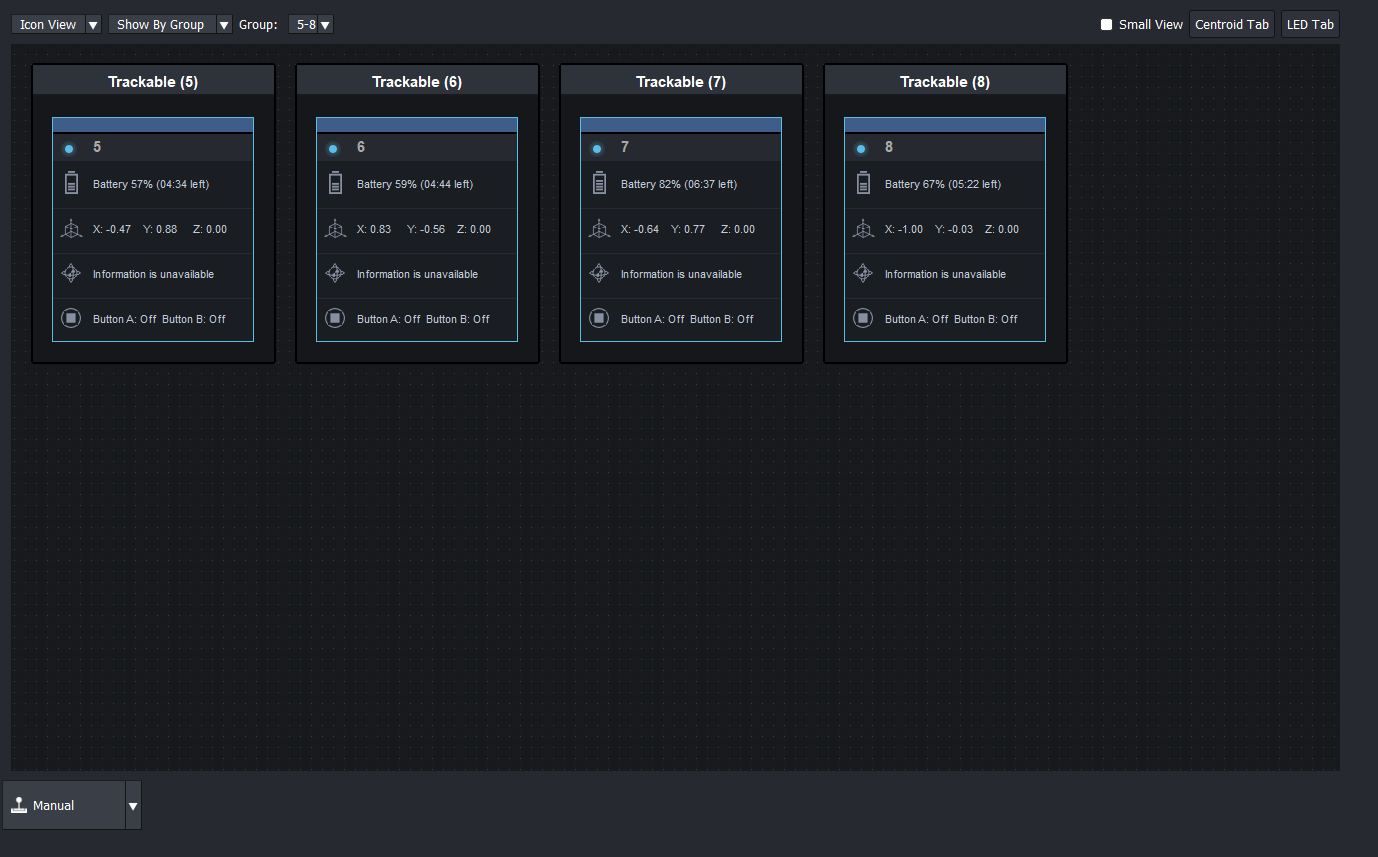

Displaying Trackables in a selected group
Tab Views
There are also two options for displaying trackable information while using the Icon View.
- Centroid Tab displays battery information, as well as the XYZ Calculated centroid of a trackable, as well as Roll, Pitch, Yaw and BTBeacon information.
- LED Tab displays battery information, as well as the XYZ information of individual LED Stringers connected to the beacon.
