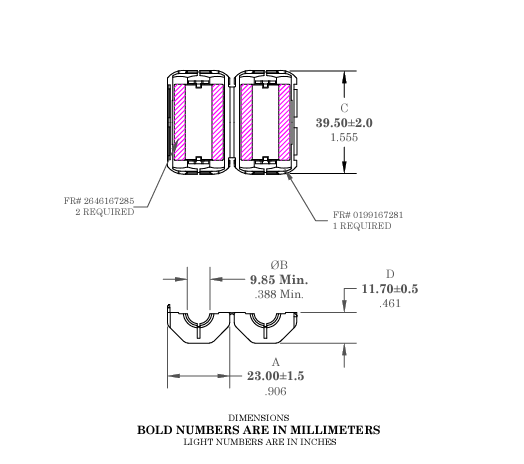

Ferrite Filter Diagram

Product ID

• Manufacturer: Fair-Rite
• Model number: 0446167281

Physical Characteristics

• Width: 2.3 cm (0.92”)
• Height:  2.4 cm (0.933”)
• Depth: 3.94 cm (1.55”)
• Center diameter: 1.02 cm (0.40”)
• Weight: 15 g (.53 oz)
• Operating temperature: 0°C to +40°C (32°F to 104°F)
• Impedance: 190 Ohm

Ferrite Function

The ferrite filter is a cylindrical clamp fastened over cables to conform with regulatory standards. A ferrite filter must be clamped over any cables connected to the TimeKeeper and BTRouter. Ferrite filters should be fastened on any connected cables as close to the respective device as possible.
