The Beacons widget is where an overview of the Beacons in the BTSystem is displayed and where Beacons in the BTSystem are controlled.

• Beacons, Mini Beacons, Rigid Frames and Soft Frames seen by the BTSystem.
• Battery percentage per Beacon (Mini Beacon does not show Battery Percentage).
• Status if the Beacon, Mini Beacon, Rigid Frame or Soft Frame is visible or not.
• LED indexes with the corresponding bit codes (binary values) for every Beacon.
• You can lock or unlock the Beacon list from the Lock checkbox.
• You can add and remove classic Beacons from the new add and remove buttons.

Beacons widget

Beacons Widget Filtering

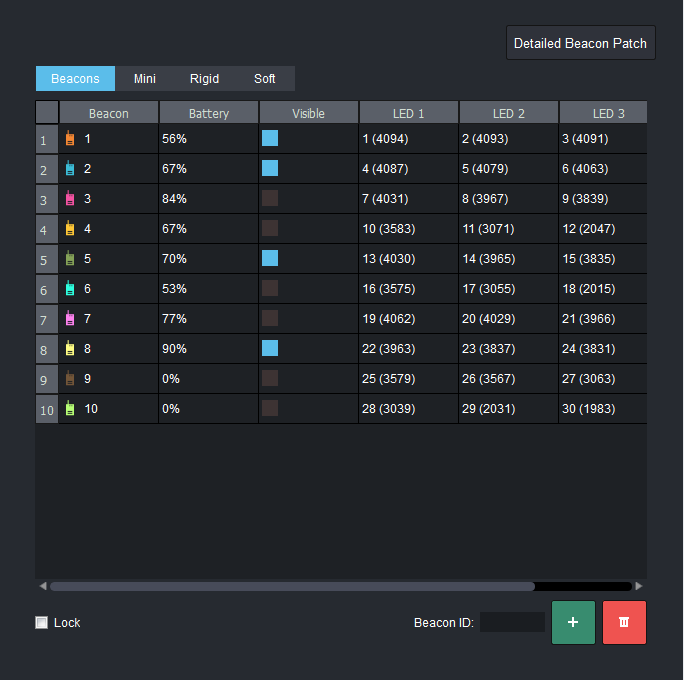

In the Beacons widget, you can click on either the Beacons tab or the Mini tab or the Rigid tab or the Soft tab to select the Beacon type that you want to show in this widget.

• Detailed Beacon Patch: Click this button to open the Beacon Patch widget.
• Beacons tab: Click on the Beacons tab to show Regular or Classic Beacons, which are the physical BTBeacons connected to the stringer.
• Mini tab: Click on the Mini tab to show Mini Beacons, which are the physical Mini Beacons with an LED embedded on top of the device.
• Rigid tab: Click on the Rigid tab to show only the Rigid Frame 'virtual' BTBeacons.
• Soft tab: Click on the Soft tab to show only the Soft Frame 'virtual' BTBeacons.
• Lock: Select this checkbox to lock the Beacons list and disable the Beacon ID box, adding and deleting Beacons in the table.(Available only in the Beacons tab.)
  • Notes:
    1. When the list is locked, Beacons will not update automatically from radio data.
    2. By default, the list is locked when a new project is loaded and when Apply Changes is pressed.
• ​Beacon ID: Assign a unique name for the Beacon. (Available only in the Beacons and Mini tabs.)
• Add button: Adds a Beacon to the list in the table. (Available only in the Beacons and Mini tabs.)
  • Notes:
    1. All Beacons follow a preset rule. (Beacon 1 = LED 1, 2, 3; Beacon 2 = LED 4, 5, 6, etc.)
    2. When adding Beacons, you can enter either a single Beacon ID or range. (e.g. 10-45)
• Delete button: Deletes a Beacon to the list in the table. (Available only in the Beacons and Mini tabs.)

Specific BTBeacons, Mini Beacons, Rigid Frames or Soft Frames can be assigned to Trackables for specific chapters. These settings will override any assignment made on the Beacon Patch page.

To assign a BTBeacon, Mini Beacon, Rigid Frame or Soft Frame to a Trackable for a specific chapter

1. In the Chapters tab, select the chapter the Trackable is in.
2. Select a Trackable.
3. Go to the Beacons widget.
4. Drag and drop icons the desired BTBeacon, Mini Beacon, Rigid Frame or Soft Frame from the list onto the currently assigned Beacon of the desired Trackable.
   • Result: The chosen BTBeacon, Mini Beacon, Rigid Frame or Soft Frame will be assigned to the Trackable for the specific chapter. A book icon will appear next to the Assignment setting in the Trackables section.
   • Note: To revert back to the globally assigned BTBeacon, click the Book icon.
5. For the changes to take effect, click Apply Changes.
