BTSystem Configuration

System Configuration Overview

Hardware modules that connect directly to the BTServer should be located in the same location outside of the tracking area. BTSensors must be positioned where they will not be disturbed and have the best unblocked view of the tracking area. TimeKeeper, BTRouter and eSync 2 Controller can be positioned closer to the tracking space.

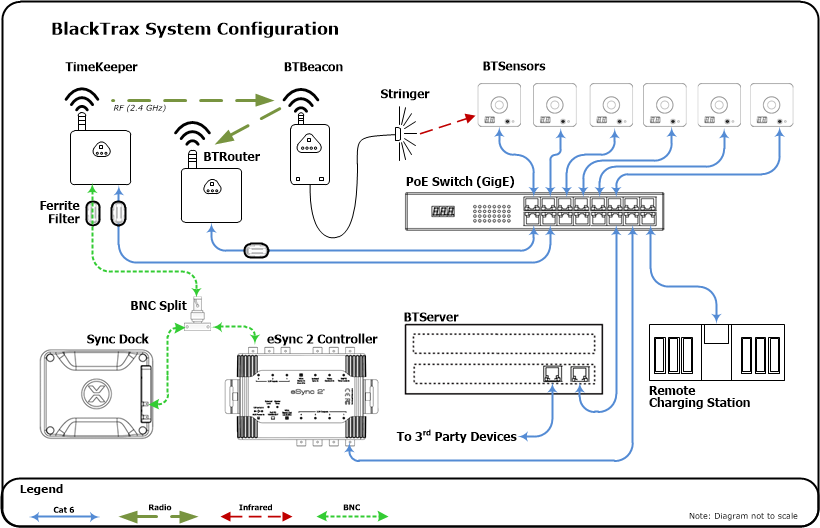

The following diagram outlines a typical hardware configuration and demonstrates how all BlackTrax hardware modules are connected together.

Attention: The Timekeeper and BTRouter Ethernet port are designed only to connect to a commercially available Power over Ethernet (PoE) network switch. The TimeKeeper and BTRouter are not designed to be a peripheral device to a Class B personal computer. As such, the Ethernet port shall not be connected to a Class B personal computer in any operating configuration.

BlackTrax System Configuration Diagram

System Config [2 22 2019]
