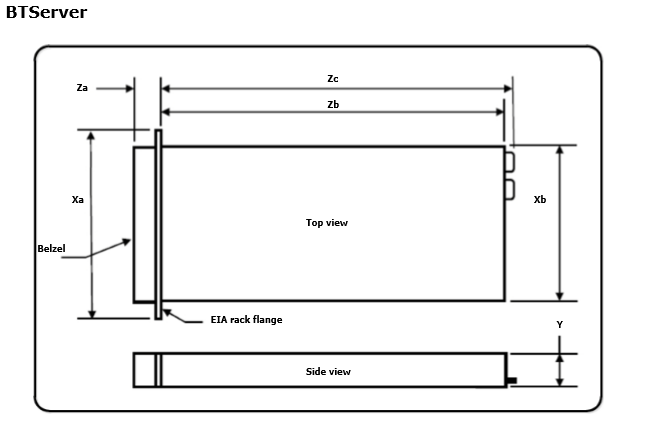

BTServer (Rev 1-4) Diagram

Physical Characteristics

Technical Specifications

BTServer Rev 4:

• (2x) Intel Xeon Processor E5-2620 v4 (8C, 2.1GHz, 3.0GHz Turbo, 2133MHz, 20MB, 85W)
• (2x) 2.5" 512GB SSD SATA in RAID 1
• 16GB (4x4GB) 2400MHz DDR4 RDIMM ECC
• NVidia GeForce GTX 1060
• Dual, Hot-plug, Redundant Power Supply (1+1), 1100W
• Integrated Intel I350 (4x1Gbit) Quad Port Network Card + Additional Intel I350 Quad-Port Gigabit Ethernet Controller
• Windows Embedded 8.1 Industry Pro

BTServer Rev 3:

• (2x) Intel Xeon Processor E5-2620 v3 (6C, 2.4GHz, 3.2GHz Turbo, 1866MHz, 15MB, 85W)
• (2x) 2.5" 512GB SSD SATA in RAID 1 -or- (2x) 2.5" 500GB HDD SATA in RAID 1
• 64GB (8x8GB) 2400MHz DDR4 RDIMM ECC
• NVidia GeForce GTX 1060 -or- NVidia GeForce GTX 960 -or- Earlier
• Dual, Hot-plug, Redundant Power Supply (1+1), 1100W
• Integrated Intel I350 (4x1Gbit) Quad Port Network Card + Additional Broadcom BCM5719 Quad-Port Gigabit Ethernet Controller
• DVD-ROM Optical Disk Drive
• Newer Systems: Windows 8.1 Pro; Legacy Systems: Windows 7 Professional

BTServer Rev 2:

• (2x) Intel Xeon Processor E5-2620 v2 (6C, 2.1GHz, 2.6GHz Turbo, 1600MHz, 15MB, 80W)
• (2x) 2.5" 500GB HDD SATA in RAID 1
• 16GB (4x4GB) 1866MHz DDR3 ECC RDIMM
• NVidia GeForce GTX 760 -or- Earlier
• Dual, Hot-plug, Redundant Power Supply (1+1), 1100W
• Intel X520-T2 Dual Port 10GbE Network Interface Card
• DVD-ROM Optical Disk Drive
• Windows 7 Professional

BTServer Rev 1:

• (2x) Intel Xeon Processor E5-2620 v2 (6C, 2.1GHz, 2.6GHz Turbo, 1600MHz, 15MB, 80W)
• (2x) 3.5" 500GB HDD SATA in RAID 1
• 4GB RDIMM, 1600MT/s, Low Volt, Single Rank, x8 Data Width
• NVidia GeForce GTX 760 -or- Earlier
• Dual, Hot-plug, Redundant Power Supply (1+1), 1100W
• Broadcom 5720 Quad Port 1Gb Network Interface Card
• DVD-ROM Optical Disk Drive
• Windows 7 Professional
