BTSensor Presets

BTSensor Introduction

BTSensors are camera devices that need to be configured in certain ways to complete specific tasks: tracking objects, referencing the BTSensor’s real-time location or aiming BTSensors. These settings can be entered manually, or automatically configured in Motive by selecting a preset for a BTSensor or BTSensors in a group. As of Motive 2.2, the following tables define the BTSensor settings that are automatically configured when you select a preset.

Note: The Rate Multiplier applies only when using Motive 2.2. The Rate Multiplier must be "-/x1 for the BTSensors to be syncing at the correct Frame Rate. You must enter the Tracking Preset and/or be in Object Video Mode before attempting to track to ensure the correct Rate Multiplier.

Tip: Rate Multiplier is the rate multiplier or divider applied to the master frame rate of the sync source.

SLIMX 13 Presets

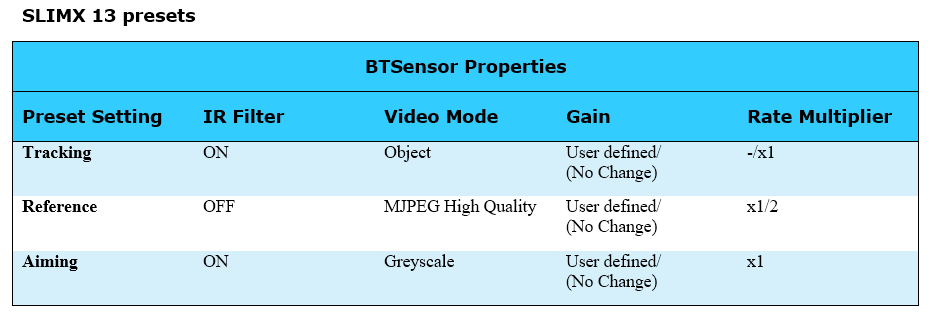

SlimX13presets22

SLIM 13E Presets

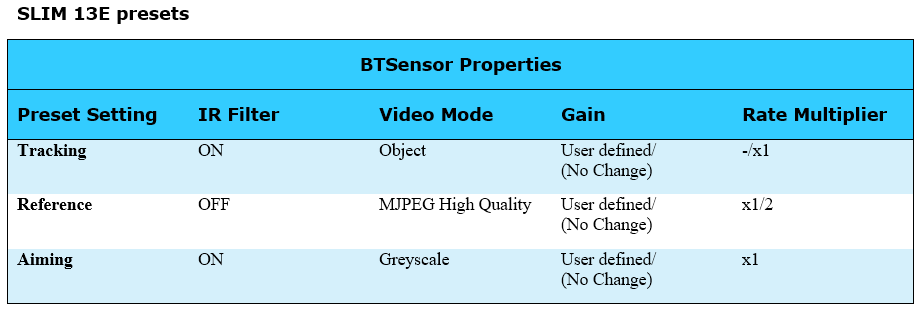

Slim 13E Presets Motive2.2

S250e SLIM Presets

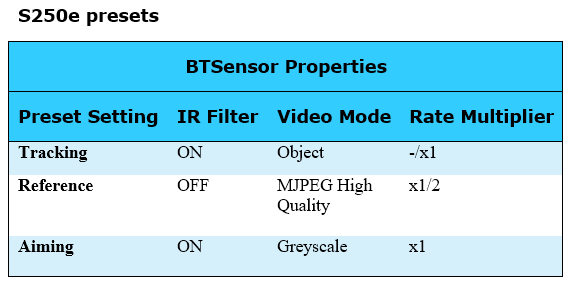

S250e Presets Motive2.2

Prime 41 Presets

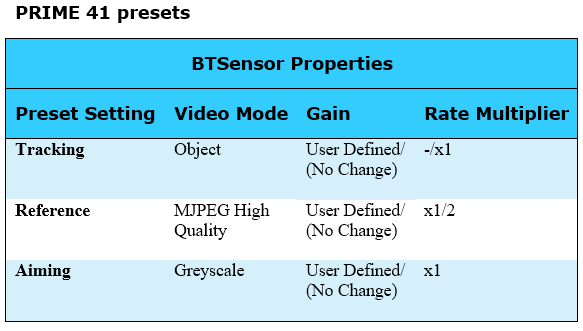

Prime 41 Presets Motive2.2

Note:

  • Prime 41 BTSensor does not have a Filter Switch.
  • Prime 41 BTSensor has an IR LED Ring that you must switch off when tracking.

To select a preset setting for a BTSensor in Motive 2.2

  1. In Motive, go to the Devices window.                                                                                                    DevicesPane2 2
    • Tip: To open the window, from the View menu, choose Devices Pane.
  2. On the Devices window, select a single camera device or devices (BTSensors) in a group.

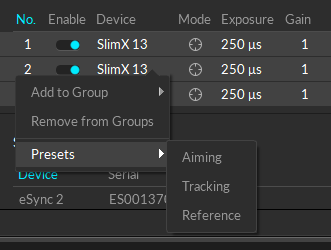

  3. Right-click on the selected list of devices to access and choose the preset for the selected devices (Aiming, Tracking, or Reference) from the Presets menu that appears.                                   PresetsMenu2 2
    • Result: The settings of the selected BTSensors will be replaced with the settings of the selected preset.

To select a preset setting for a BTSensor in Motive 2.0

  1. In Motive, go to the Devices window.                                                                                                   DevicesGroup CameraSettings
    • Tip: To open the window, from the View menu, choose Devices Pane.
  2. In the Devices window, select a single BTSensor, or select all BTSensors in the group by clicking the group name.

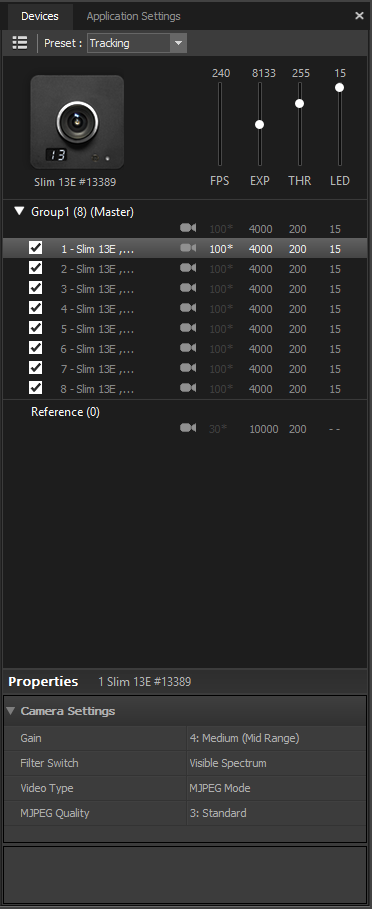

  3. At the top of the Devices window, click the Preset drop-down menu and select the desired preset.
    • Result: The selected BTSensors will have their settings changed to that of the selected preset.

Note: BTSensors have been custom designed for BlackTrax, which removes the illumination ring.
