BTRouter Diagram
  BT Router


Product ID

  • IC: 10858A-BTTKV01
  • Model number BTTKV01

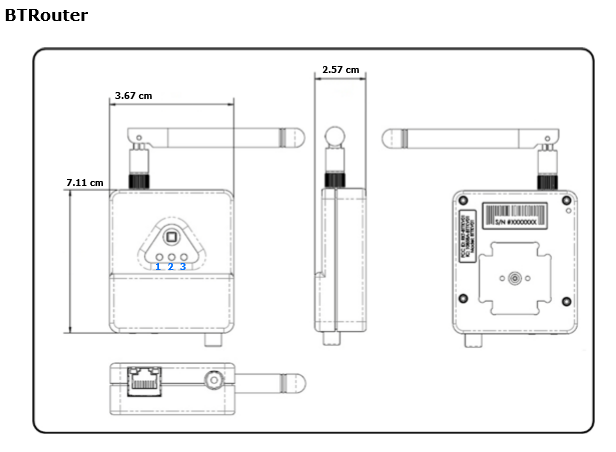

Physical Characteristics

  • Width: 5.7 cm (2.245")
  • Height: 7.11 cm (2.8")
  • Depth: 2.57 cm (1.013")
  • Weight: 125 g (4.41 oz)


Operating Temperature

  • 0°C to +40°C (32°F to 104°F)


Input/Output & Power

  • Data: Ethernet, Radio 2.4(GHz) 10Hz
  • Power: 48VDC/15.6W from PoE Network Switch via Ethernet port (No input power via USB port)

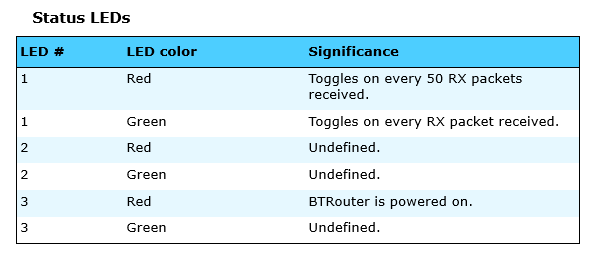

Status LEDs

Router Status LED's


BTRouter Functions

The BTRouter is a single wireless access point that uses a proprietary radio system running on 2.4 Ghz frequency to receive data from all BTBeacons. Data received includes BTBeacon button presses, battery status, configuration details as well as inertial measurement unit (IMU) data. IMU data can be used to calculate the BTBeacon’s orientation.

Note: Upon delivery of a new BTSystem shipment, the IMU on most of the Beacons included are disabled by default, and the IMU of the Beacon with ID 1 will be switched on by default to help with Fixture Calibration.

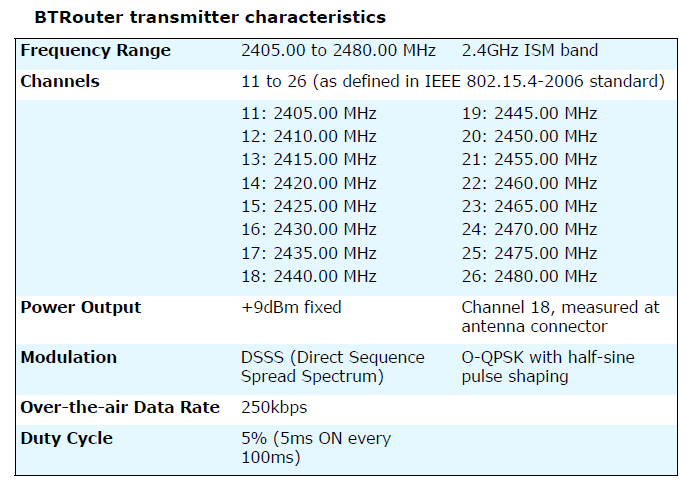

BTRouter Transmitter Characteristics

BTRouter   Transmitter Characteristics
