BT-1 System Configuration

BT-1 System Configuration Overview

Hardware modules that connect directly to the BT-1 Server should be located in the same location outside of the tracking area. BTSensors must be positioned where they will not be disturbed and have the best unblocked view of the tracking area. TimeKeeper and eSync 2 Controller can be positioned closer to the tracking space.

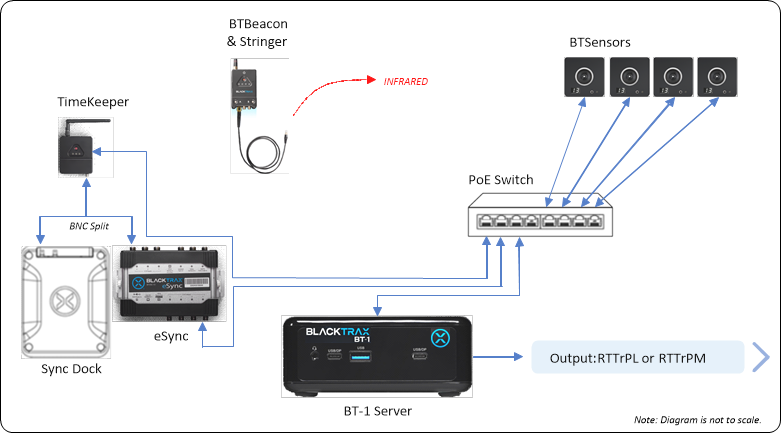

The following diagram outlines a typical hardware configuration and demonstrates how all BT-1 hardware modules are connected together.

Attention: The Timekeeper Ethernet port is designed only to connect to a commercially available Power over Ethernet (PoE) network switch. The TimeKeeper is not designed to be peripheral devices to a Class B personal computer. As such, the Ethernet port shall not connect to a Class B personal computer in any operating configuration.

BT-1 System Configuration Diagram

BT1SystemDiagram
