After a project is created, modified, and saved in BTWYG, the new information must be sent and applied to the BlackTrax Project.

There are three methods for sending BTX information to BlackTrax from BTWYG:

• BTX Apply in LIVE mode
• BTX Export in CAD mode
• BTX Apply in CAD mode

To send BTX information with BTX Apply in BTWYG LIVE mode

1. In BTWYG LIVE mode, from the Live menu, choose BlackTrax Panel.
   • Result: The BlackTrax window appears.
2. Ensure that the BlackTrax Portfolio is open, and BTWYG is connected to it.
3. In the BlackTrax window of BTWYG , click BTX Apply.
   • Result: BTWYG sends the BTX information to the BlackTrax Project.

To send BTX information with BTX Export in BTWYG CAD mode

1. In BTWYG CAD mode, from the BlackTrax menu, choose BTX Export.
   • Result: A Save as window appears.
2. In the window, navigate to where you want to save the project file.
3. In the File name field type in the name of the project.
4. Click Save.
   • ​​Result: The BTX information from BTWYG is exported and saved as a separate file which can be used to manually update your BlackTrax Project.
   • Note: If there are errors in the export, BTWYG will display the errors after the export is completed.

BlackTrax Menu found in CAD mode

To send BTX information with BTX Apply in BTWYSIWYG CAD mode

1. Ensure that the BlackTrax Portfolio is open, and BTWYG is connected to it.
2. In BTWYG CAD mode, from the BlackTrax menu, choose BTX Apply.
   • ​​Result: BTWYG sends the BTX information to the BlackTrax Project.

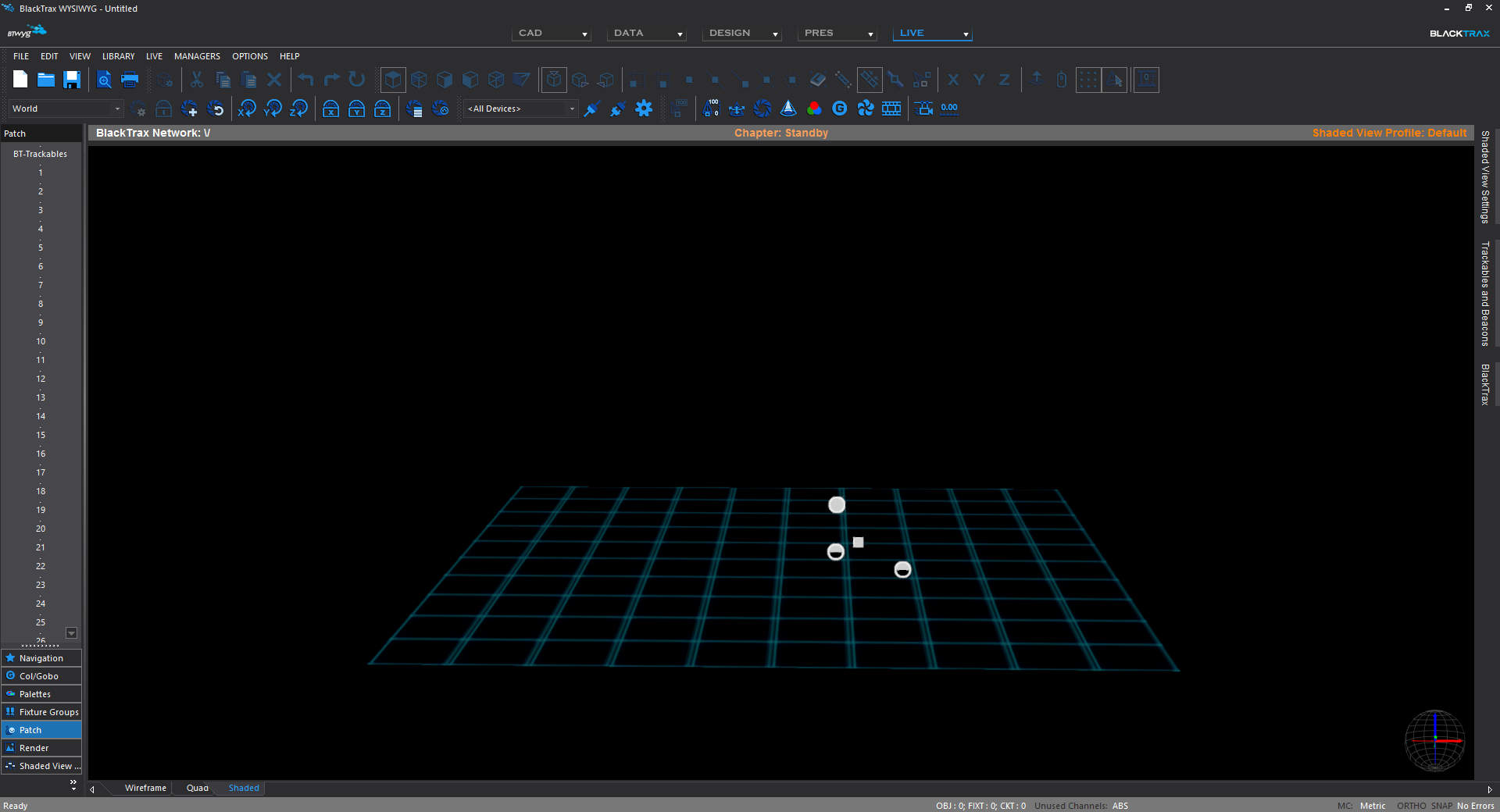

LIVE mode showing the BlackTrax panel with BTX Apply
