Toolbars

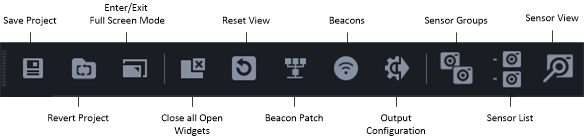

Main Toolbar in Live View

MainToolbarLiveView V232

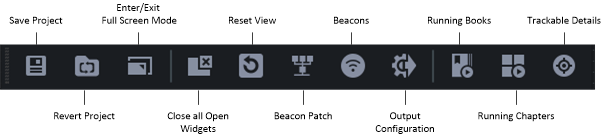

Main Toolbar in Edit View

MainToolbarEditView240

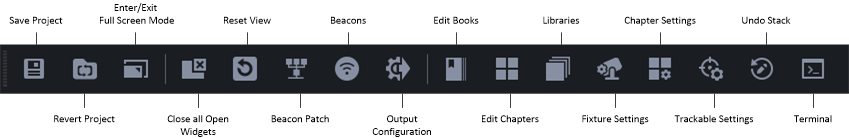

Main Toolbar in Calibration Views > Sensor Calibration

ToolbarSensorCalibrationView2 5

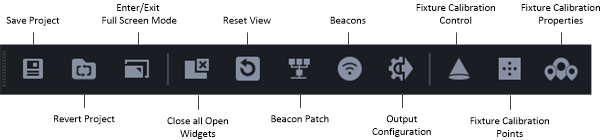

Main Toolbar in Calibration Views > Fixture Calibration

MainToolbarCalibrationFixtureView V232

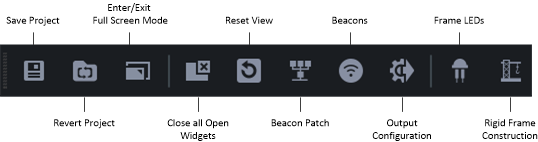

Main Toolbar in Calibration Views > Frame Calibration

MainToolbarCalibrationFrameView V232

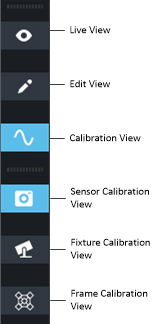

View Toolbar

ViewToolbar V232

View and Sub-View Toolbar (Legacy Mode is selected in System Configuration > Sensor by default)

ViewSubViewToolbar V232

View and Sub-view Toolbar (Legacy Mode is not selected in System Configuration > Sensor)

SubviewToolbarNonLegacy

There are three toolbars in the BlackTrax GUI: Main, Views, and Sub-Views.

  • Main: On top of the left side, contains basic operations such as saving , as well as common functions found throughout the software such as Reset View, Beacon Patch, and a fullscreen option. On the right side, you have access to the most used docking widgets found in your current view. The right side of the toolbar will change depending on which view you are currently in.
  • Views: The ability to change between the three core views: Live, Edit, and Calibration.
  • Sub-Views: Sub-views are available for the Calibration Views. Each sub-view offers functions related to a specific type of calibration.
