TimeKeeper

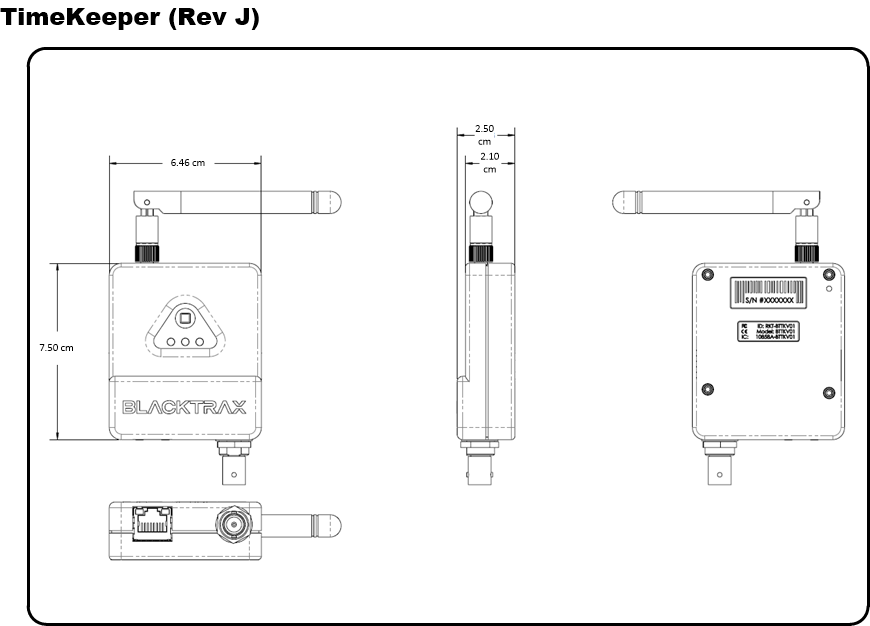

TimeKeeper (Rev J) Diagram

TimeKeeperRevJ Diagram



Product ID

  • FCC ID: RKT-BTTKV01
  • IC: 10858A-BTTKV01
  • Model number: BTTKV01



Physical Characteristics

  • Width: 6.46 cm (2.545")
  • Height: 7.50 cm (2.951")
  • Depth: 2.50 cm (0.968")
  • Weight: 86.64 g (3.056 oz)



Operating Temperature

  • 0°C to +40°C (32°F to 104°F)



Input/Output & Power

  • Data: Ethernet, Radio 2.4(GHz) 10Hz
  • Power: 48VDC/15.6W from PoeE Network Switch via Ethernet port (No input power via USB port)



Status LEDs

Status LED's Timekeeper

Note: The Ethernet status lights on the TimeKeeper are not enabled while the TimeKeeper is in use.



TimeKeeper Functions

The TimeKeeper is a single wireless access point that uses a proprietary radio system running on the 2.4 Ghz frequencey to send data to all BTBeacons. Data sent includes a signal used to synchronize the BTBeacons with the BTSensors and configuration commands sent to the eSync Controller via a BNC cable.

When USB based cameras are used in BlackTrax, TimeKeeper is connected to the Sync port of an OptiHub via RCA connection. USB camera systems require different synchronization settings for Motive. TimeKeeper must be configured in the Device Manager for the specific use of USB camera systems.



TimeKeeper Transmitter Characteristics

Timekeeper Transmitter Characteristics
