Frame LEDs Widget

BlackTrax GUI  »  Calibration View  »  Frame Calibration View  »  Frame LEDs Widget

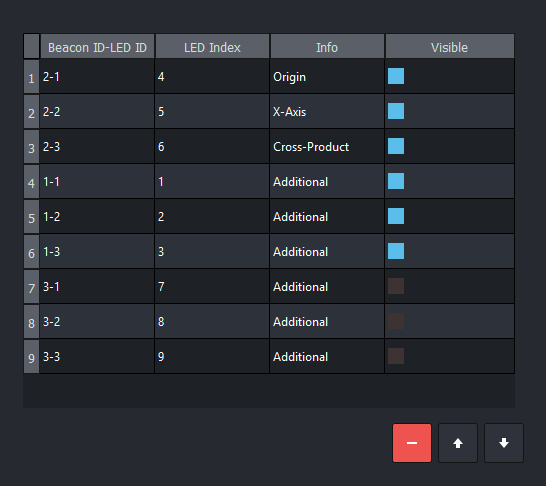

Frame LED 232  Frame LEDs widget

Overview

The Frame LEDs widget displays all the LEDs assigned to the currently selected Rigid or Soft Frame in the Frame Calibration View . The widget lists the LEDs assigned in a table format. The columns listed are: Beacon ID-LED ID, LED Index, Information on the LED placement order, and the Visibility status.

Usage

The Frame LEDs widget is used to assign Beacon LEDs to the currently selected frame in the Body Frames widget. The widget lists all the LEDs currently assigned to the selected frame in a column format, with the following columns:

  • Beacon ID-LED ID
    • Lists the Beacon ID and the LED ID (example 3-1 is Beacon 3, LED 1).
  • LED Index
    • The ID of the LED sorted in order of insertion (before re-ordering).
  • Info
    • Lists the information on the LED placement order: Origin, X-Axis, Cross-Product, Additional. Please refer to Assigning LEDs to a Rigid Frame in Rigid Frames.
  • Visible
    • Shows the visibility status icon (Blue for visible, red for not visible, grey for inactive).

You can drag beacons from the global Beacons widget to add to the currently selected frame into this widget to assign them to the frame.

There are also three buttons at the bottom of the widget:

  • Remove Selected LEDs
    • Removes the select LED from the frame.
  • Re-Order LED: Switch with Previous
    • Moves the currently selected LED and swaps it with the previous LED, if it is the first in the list, it will not move.
  • Re-Order LED: Switch with Next
    • Moves the currently selected LED and swaps it with the next LED in the list, if it is the last in the list, it will not move.

You can replace each of the beacons in the Frame LEDs widget.

To replace a beacon

  1. In the Frame LEDs widget, right-click on a selected beacon in the table.
    • Result: The Replace Beacon tooltip is displayed.
  2. Click on the Replace Beacon tooltip.
    • Result: The Replace Beacon dialog box appears.
  3. From the drop-down list, select the Beacon ID which will replace the selected Beacon.
  4. Click OK.
    • Result: The new Beacon ID number is displayed in the table with the corresponding LED ID.

Note: Re-construct the Rigid Frame in the Rigid Frame Construction widget, then click Apply Changes.
