Fixture Calibration Section

The Fixture Calibration section of the System Configuration widget is where the settings that affect the collection of measurement points of the fixtures can be toggled On or Off.

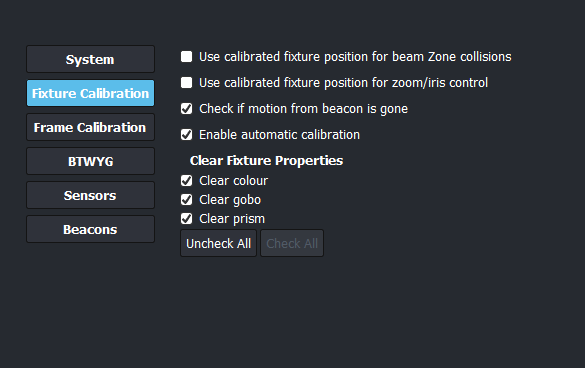

SystemConfigurationFixtureCalibration243  Fixture Calibration section

  • Fixture Calibration
    • Use calibrated fixture position for beam Zone collisions: Select this checkbox to use the calibrated beam zone settings of the fixture that was calibrated in BlackTrax. Clear this checkbox to use the beam zone settings applied to the fixture as drawn in BTWYSIWYG.
    • Use calibrated fixture position for zoom/iris control: Select this checkbox to use the calibrated zoom and iris settings of the fixture that was calibrated in BlackTrax. Clear this checkbox to use the zoom and iris settings applied to the fixture as drawn in BTWYSIWYG
    • Check if motion from beacon is gone: Select this checkbox to disable the collection of measurement points when the signal from a beacon is not seen and a warning is displayed. Clear this checkbox to enable the collection of measurement points and the warning will not be displayed.
    • Enable Automatic Calibration: Select this checkbox to enable the automatic collection of the measurement points after the 5th measurement point and every point thereafter.
    • Clear Fixture Properties: Select the checkboxes for Clear ColourClear Gobo, and Clear Prism to remove the colour, gobo, and prism attributes from the fixtures selected in BlackTrax.
    • The fixture goes to white when Clear Colour is selected.
    • The gobo is removed from the fixture when Clear Gobo is selected.
    • The prism is removed from the fixture when Clear Prism is selected.
    • Uncheck All/Check All: Click on Uncheck All or Check All buttons to include or exclude the colour, gobo, and prism from the selected fixture in BlackTrax.
